Year 10 Design Technical Graphics

This year, our Year 10 students have lit up the Technologies Learning Area with their creative and technically impressive lantern design projects. Using industry-standard software such as AutoCAD and Autodesk Inventor Professional, students brought their ideas to life through a combination of 3D printing and laser cutting.

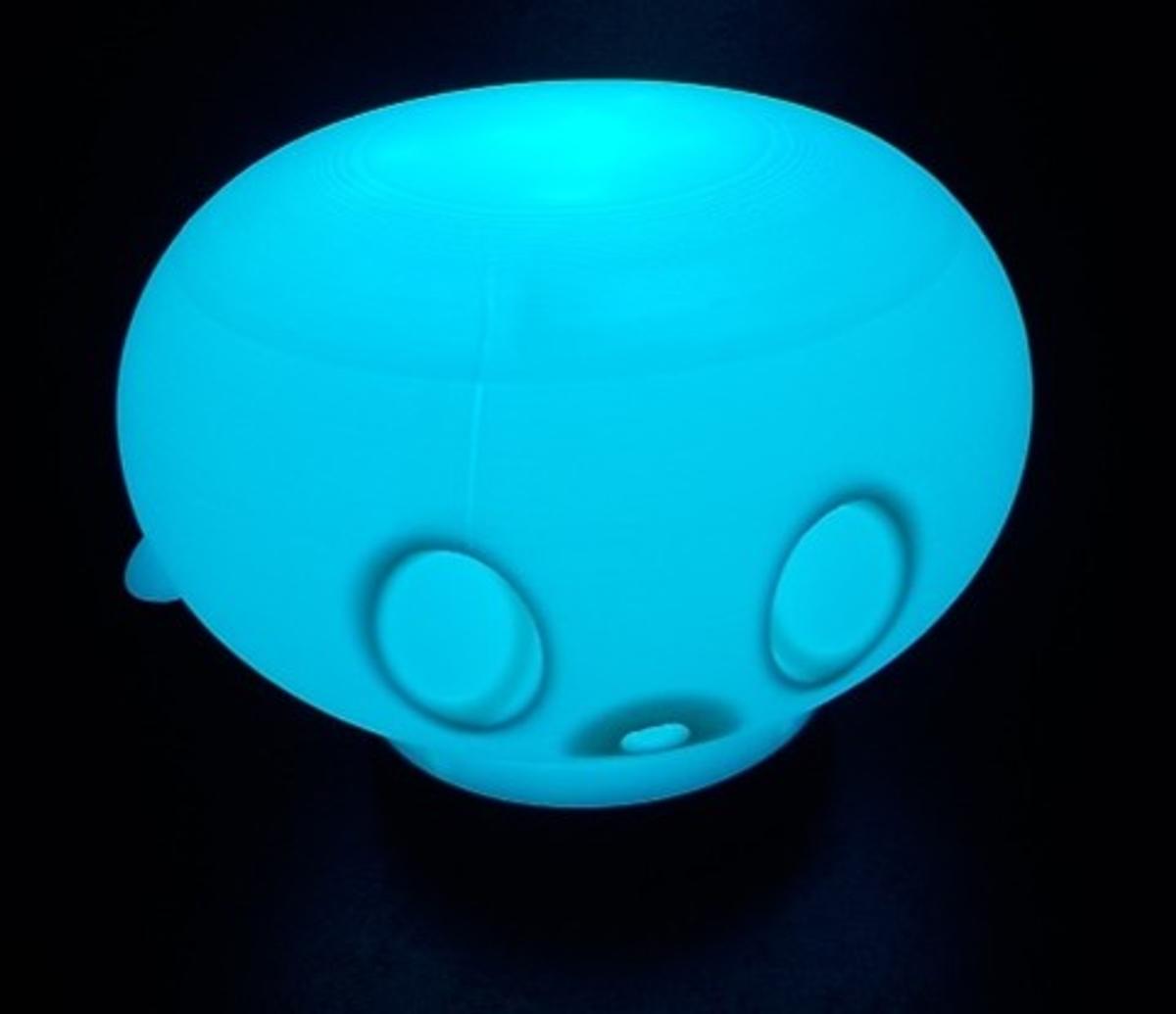

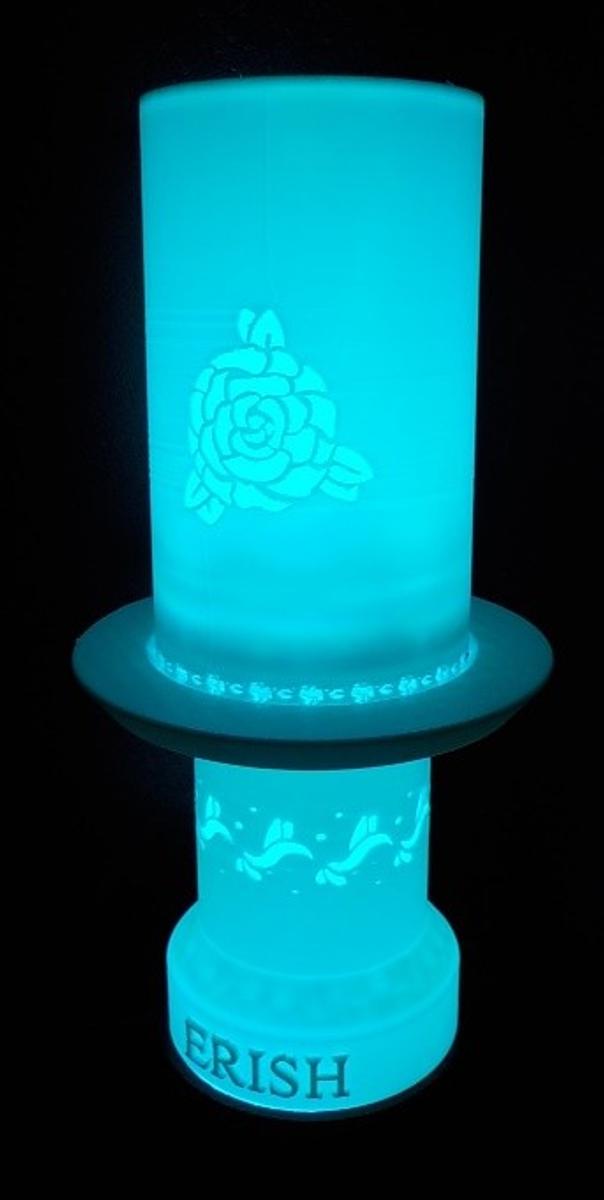

Each lantern was designed with a unique aesthetic and purpose, ranging from geometric patterns and nature-inspired motifs to pop culture themes and abstract forms. The integration of circular LED lighting, either embedded in the base or suspended within the structure, added a professional finish and functional glow to every piece.

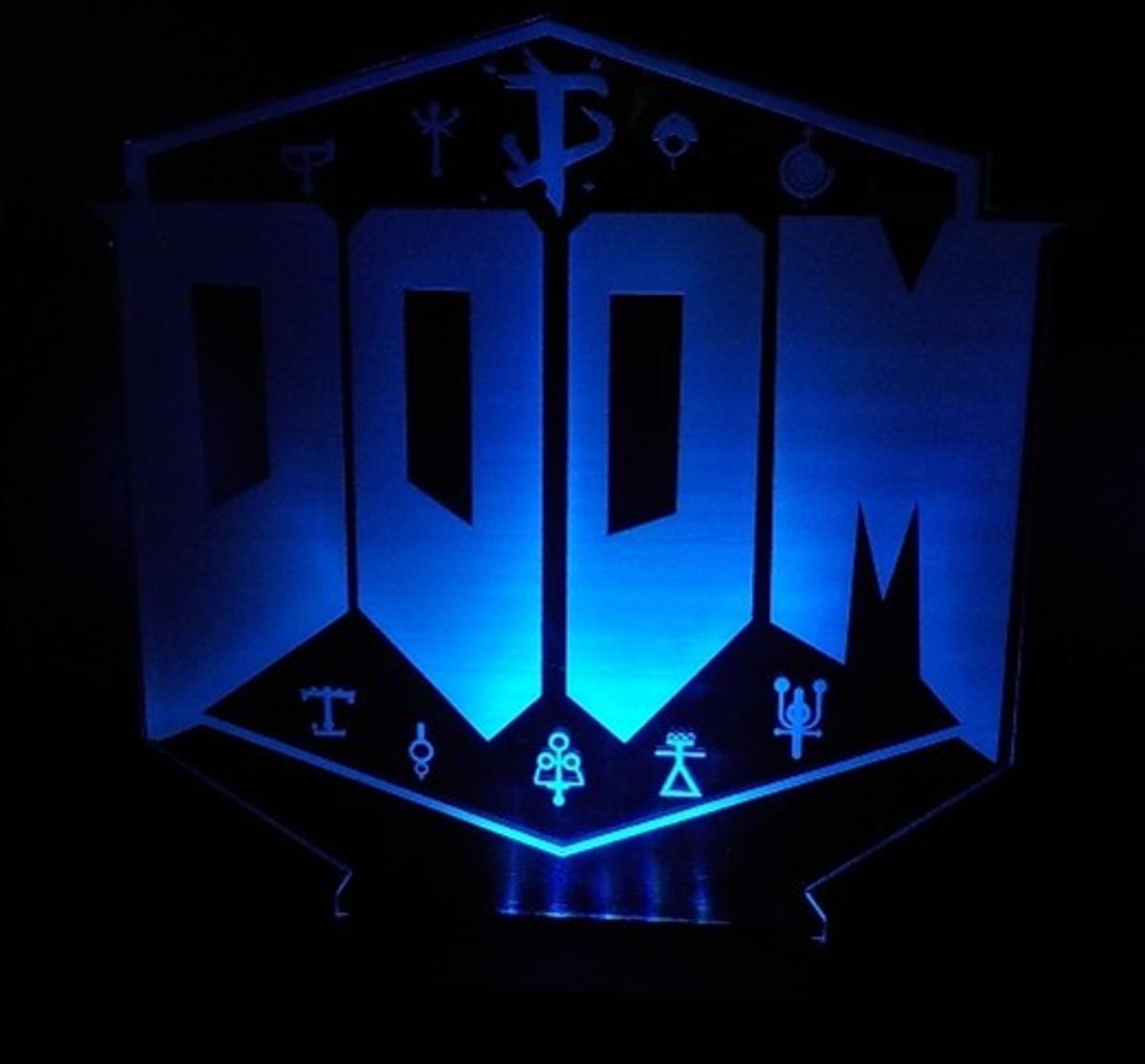

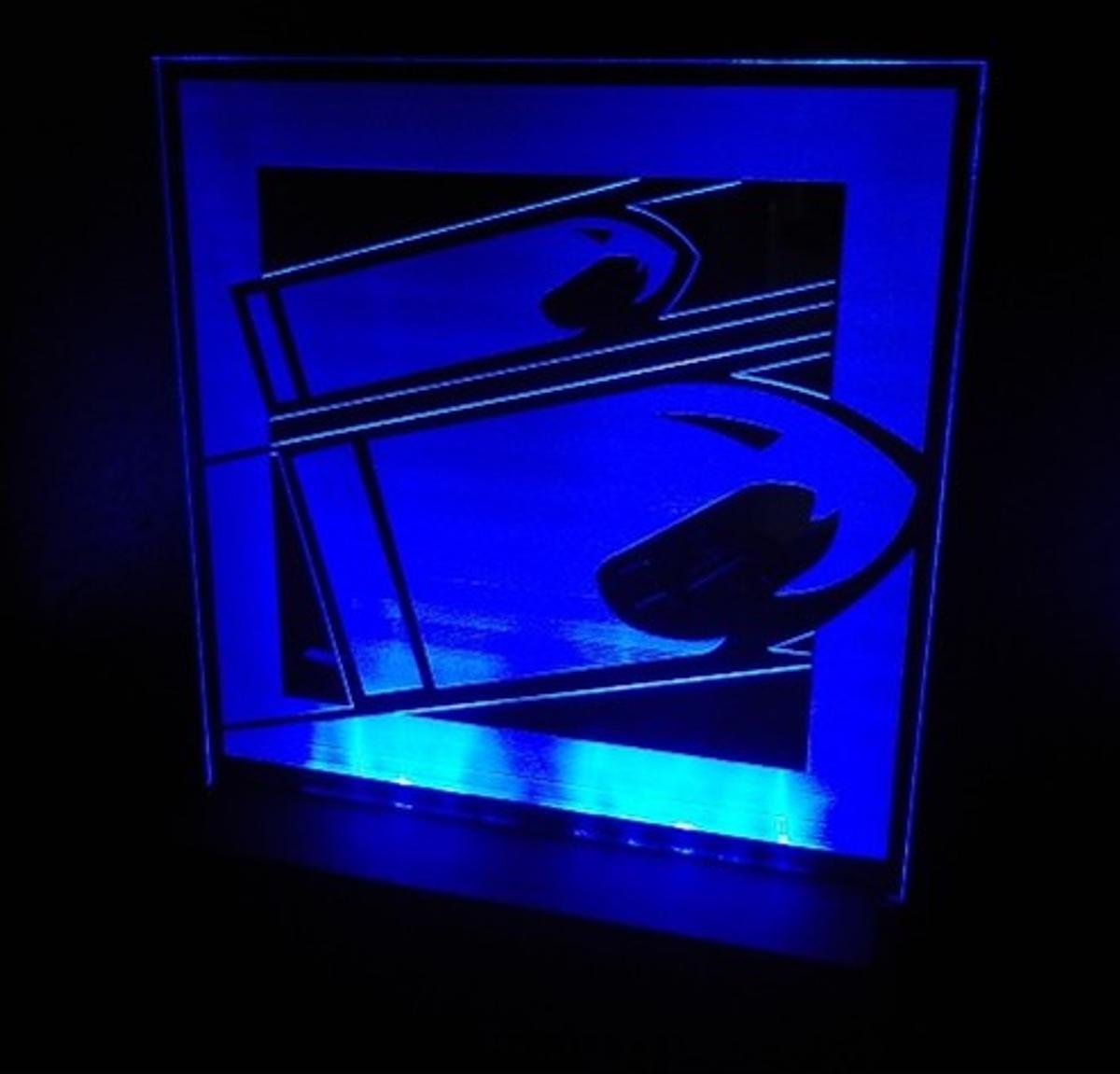

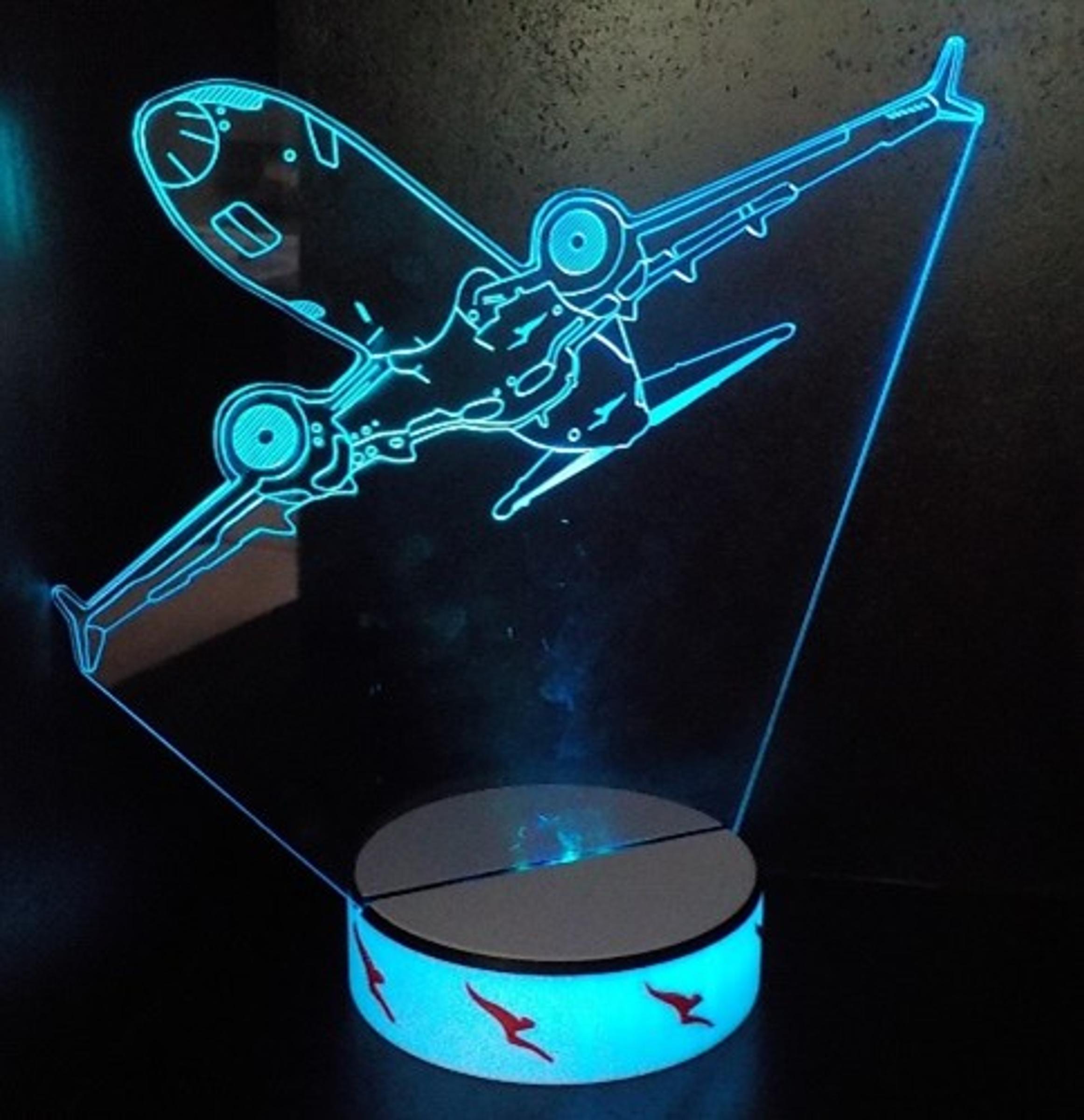

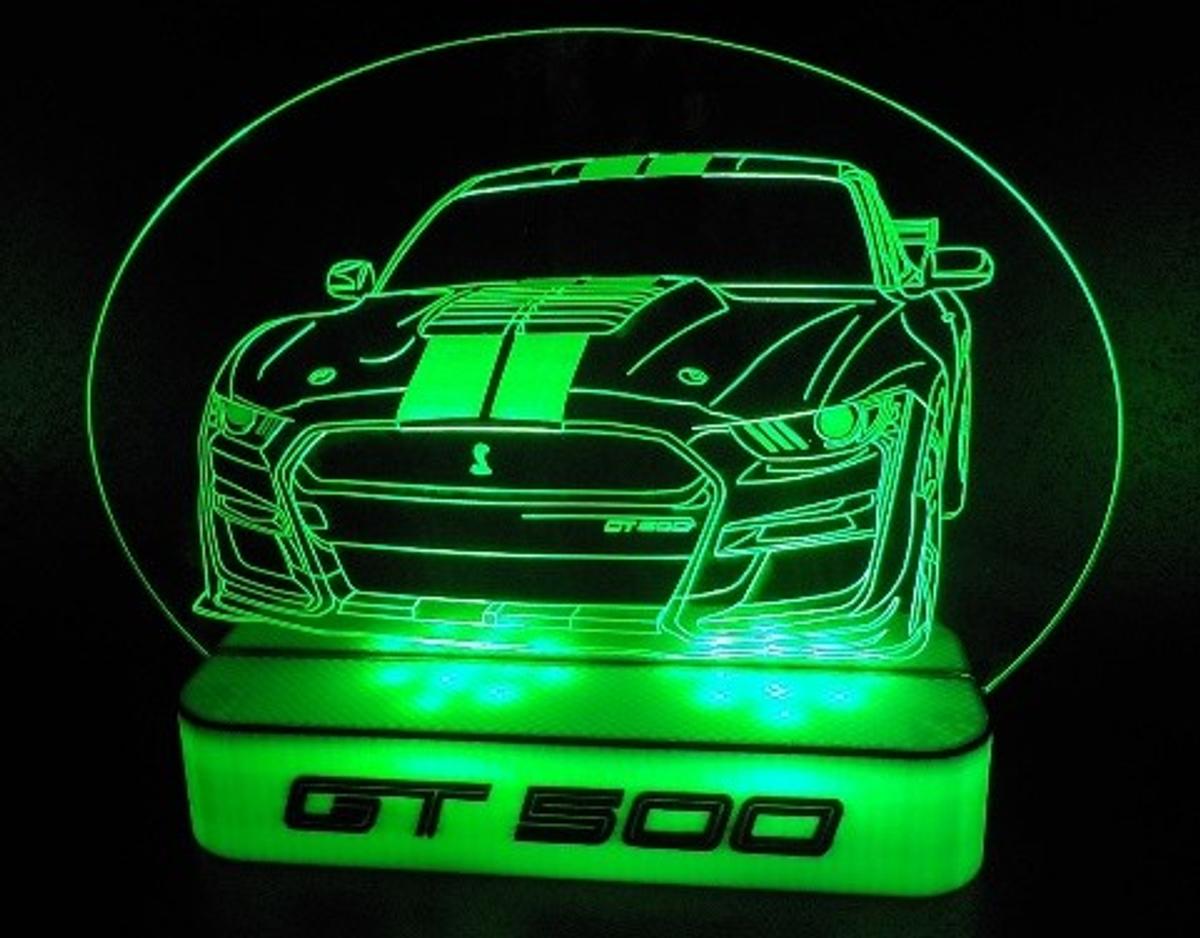

Design Meets Technology: Students began the process by sketching concepts and translating them into precise digital models. They then used AutoCAD for 2D laser-cut panel designs, often incorporating intricate patterns and engraved details. Inventor Professional for 3D modelling, allowing for assembly and interlocking components.

The final products were manufactured using our laser cutter and Bambu Lab P1S 3D printers. This project not only showcased student creativity but also developed valuable skills in CAD design and digital fabrication.
